Surly Skid Loader

Surly Skid Loader
  • Color: Bathwater Gray
$4,799.00
Color:
Bathwater Gray
Please select options

Details

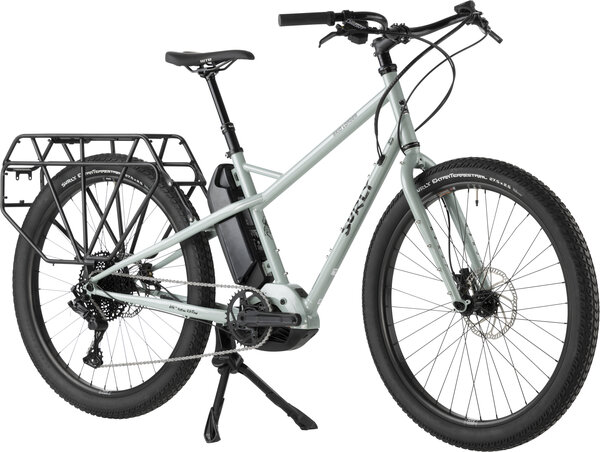

Skid Loader is a compact electric cargo bike wired for large loads, small footprints, and everyday deviant behavior.

Just as Easy, Not as Big
Cutting back on car trips is a worthy undertaking, especially in these times of planetary peril. With its electric-assist motor and extreme hauling capabilities, our compact electric cargo bike Skid Loader invites those inclined to throw a leg over and wave their middle digits at downtown gridlock. Built for finding more ways to drive less and ferrying various materials to work, play, or wherever, we gave Skid Loader the utility of a long-tail and a manageable footprint that fits wherever a normal bike does.

Comfortable and compliant under load, Skid Loader also enjoys cutting loose without cargo. Engineered to ride and feel like a regular bike, its 27.5" wheel platform provides abundant tire options you don't get from cargo bikes rolling on smaller wheels. And because it's a Surly, we gave it ample tire clearance and built it for commutes that go from bus stop to bandit trail. We also gave all three frame sizes adequate standover and a dropper post to fit riders of assorted shapes and sizes. Furnished with useful accessory barnacles and internal routing for just about everything, Skid Loader's scaled-down and feature-packed cargo frame removes the roadblocks between you and riding whenever the hell you want.

- Equipped with Bosch Performance Cargo Drive Unit, featuring four invigorating levels of ride assist
- Capable of running dual batteries for extended range (all mounting hardware and wiring included)
- Dedicated rear rack rated for 100 pounds of potatoes, thanks to beefed-up M6 hardware
- Internal cable routing for dropper post, brake, shifter, and lights
- Mounts for fenders, front rack, and bottle cages (two on Medium and Large, one on Small)
- Stable dual-leg kickstand for your loading convenience
- Compatible with Surly Excellent Adventure rear axle for use with Surly Bill and Ted Trailers; accommodations for human cargo
- Sturdy, full-size wheels and large-volume 27.5 x 2.5" ExtraTerrestrial tires



Geometry Chart:
SizeSmallMediumLarge
Seat Tube Length (mm) 445 445 500
Top Tube Length (Effective) (mm) 560 595 630
Head Tube Angle 72.5° 72.5° 72.5°
Seat Tube Angle 60.0° 60.0° 60.0°
BB Drop (mm) 60 60 60
Chainstay Length (mm) 530 530 530
Wheelbase (mm) 1153 1190 1226
Standover Height (mm) 709 743 780
Head Tube Length (mm) 160 185 210
Fork Length (mm) 417 417 417
Fork Rake / Offset (mm) 50 50 50
Stack (mm) 593 616 640
Reach (mm) 373 401 428
Stem Length (mm) 60 70 80
Stem Angle 7.0° 7.0° 7.0°
Handlebar Width (mm) 718 735 735
Crank Length (mm) 170 175 175

Specs

Frame 100% Surly Chromoly Steel, Natch tubing, double-butted main traingle, TIG welded, E.D. coated
Fork 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Rims WTB i35 27.5 HTZ 36 hole
Hubs Front: Novatec Thru Axle 36h, 15x110mm
Rear: Novatec HG spline cassette hub, sealed bearing, CrMo axle, Thru Axle, 36h, 12x148mm
Spokes Sha Dar Stainless 14g
Tires Surly ExtraTerrestrial 27.5x2.5 60tp
Crankset FSA Mega Arm set for Bosch w/ FSA Mega Ring Steel 38t
Shifters microSHIFT Advent X Pro single click
Rear Derailleur microSHIFT Advent X 10 speed
Cassette/Freewheel ADVENT X H-Series 10 Speed Cassette 11-48
Chain TAYA 10 speed, Bosch E-bike, For 1000W and 160Nm output torque, DHT finish
Brakes Tektro 4 piston M745
Rotors Tektro 180mm 6 bolt
Brake Levers Tektro M745
Handlebars Surly Terminal Bar
Tape/Grips Velo Grips
Stem Kalloy 4-bolt 31.8 mm clamp
Headset Cane Creek ViscoSet/40 series
Seatpost Trans-X Dropper Post, 120 mm/400 mm
Saddle WTB Volt
Pedals Sold Separately
Motor Bosch Performance Cargo Drive Unit 20mph
Battery 500wh

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Bathwater Gray / Small 708752369238 BK2939 210000012394
Bathwater Gray / Medium 708752369252 BK2940 210000012388
Bathwater Gray / Large 708752369276 BK2941 210000012395
